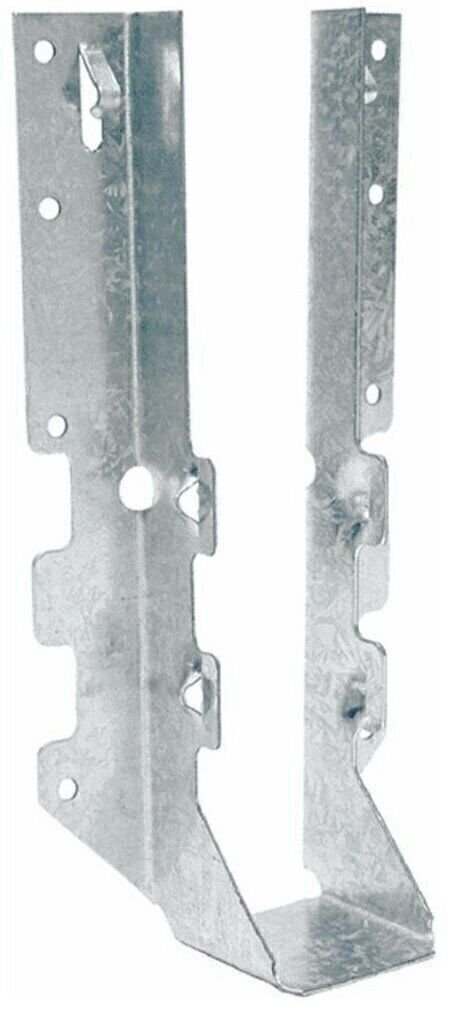

75 Pack Simpson Strong Tie LUS210Z 2x10 Light Double Shear Joist Hanger Z-Max Finish

Simpson Strong-Tie LUS hangers are a light capacity joist hanger that utilize double shear nailing for added strength. This innovation distributes the load through two points on each joist nail for greater strength. It also allows the use of fewer nails, faster installation, and the use of standard nails for all connections. The Strong-Tie LUS210Z face mount joist hanger features a G185 ZMAX galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.
  • 4-1/4" Minimum Heel Height
  • 18 Gauge

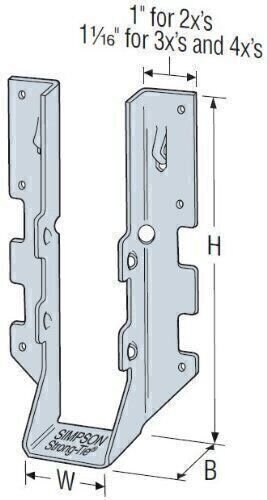

  • 1-9/16"W x 7-13/16"H x 1-3/4"B
  • Use with 10d Fasteners
  • Z-Max:Hot Dip Galvanized(G185) 1.85oz of zinc per sq-ft surface area per ASTM A653 total both sides
